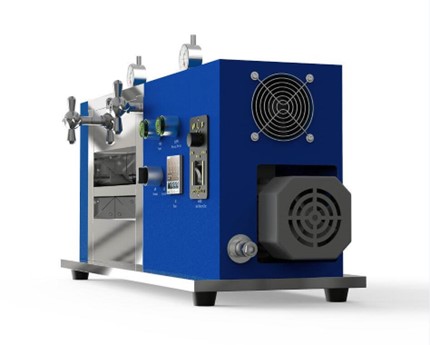

Hot Rolling Press Machine
This type of roller press is specially used for electric rolling of small lithium electrode sheets, a small amount of precious metal materials such as gold and silver, copper and aluminum, and other non-ferrous materials. It is especially suitable for thinning and increasing density of lithium battery plate, which is a clean energy material. The machine adopts gear drive to realize roll pressing. The rolling thickness can be adjusted and used conveniently. It can realize percentile meter to directly control the material pressing thickness.
| Model | JS-100 |
| Working Power | 2000W |
| Voltage | 220V/110V selectable |
| Roller Size Options | 100mm Dia. x 100mm W
100mm Dia. x 200mm W 100mm Dia. x 300mm W 100mm Dia. x 400mm W (not recommended) |
| Hardness of roll surface | HRC62 |
| Calendering Thickness
(Effective clearance) |
0~2 mm adjustable |
| Dial Gauge Accuracy | 0.01mm |
| Rolling Speed | 0 – 40 mm/s |
| Roller Surface Finish | Hard chromium plating never rusts |
| Max. Pressure | 5Ton |
| Heating Temperature | · 120 – 200°C customizable |
| Temperature Accuracy | +/-1°C |
